About Us
We, "MAXWELL CONTROL", have been engaged in manufacturing and supplying an exclusive range of Auto Web Tension control systems Our wide product range is appreciated in the market for its cost-effectiveness, long lasting These products are manufactured in accordance with the international quality standards by using high quality raw material. Our products are generally used in various industries such as Flexible printing and packaging, woven sack, foil industries etc.
we have been successfully providing high quality of products to diverse areas and sectors. With the help of our dedicated team of professionals, we have been able to develop good quality products as per the demands and needs of the customers. In addition to this, our professionals regularly meet our clients to know their exact specifications and serve them accordingly. For all these reasons, our entire range of fine quality products are highly appreciated by our prestigious clients.
Our team of highly skilled professionals regularly keeps a proper check on our manufacturing process, right from the time of procuring raw material till the final delivery of the products.
Our Applications
- Rotogravure printing machine
- Flexo Printing Machine
- Lable Printing Machine
- Lamination machine
- Slitting machine
- VMCH coating Machine
- Doctoring Machine
- Extrusion Coating Lamination Machine
-

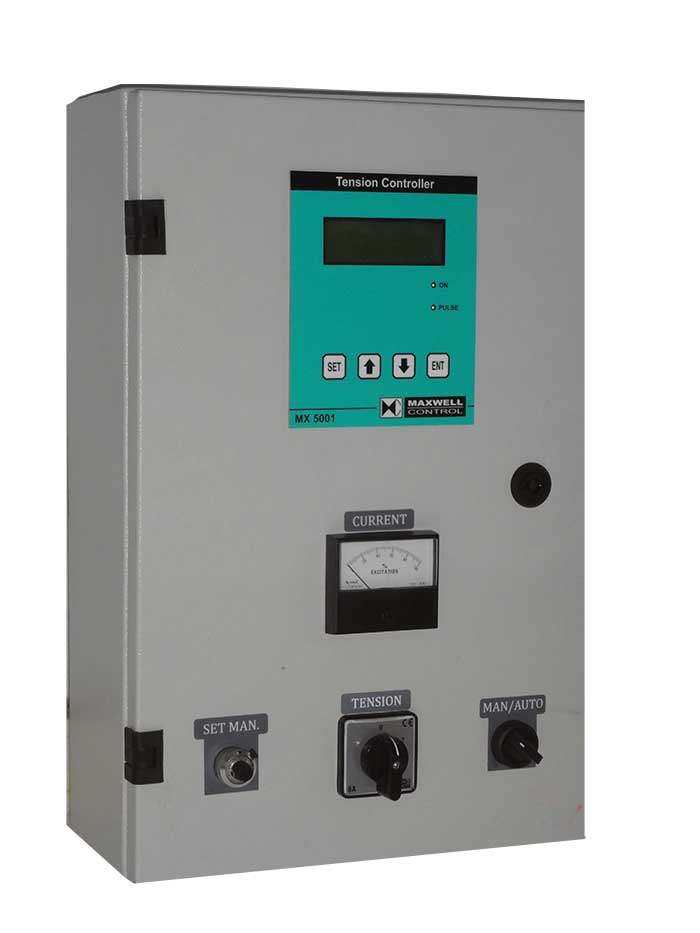

Web Tension Control Systems
AUTO WEB TENSION CONTROL SYSTEMS WITH POWDER BRAKE, PNEUMATIC BRAKE, A.C. & D.C. MOTOR CONTROL PANEL
MAXWELL CONTROL has developed an ultimate Load Cell based Web Tension Controller which super fast all the other types of controllers and technically excels in performance
Parameters
- Constant Tension in the entire range viz. 'ZERO' speed to 'FULL' speed.
- High Accuracy
- Direct Tension Display on LCD.
- Consistent performance
- Less maintenance
- High reliability and stability in performance
-
Powder Brake
MAXWELL CONTROL powder brake is coupling comprises of two concentric parts, the body or input part containing the field coil within it, separated by small annular gap, an inner rotor, or output part. The annular gap contains a magnetic powder, which is activated when the coil is energized. The resultant flux which is generated, passes through the powder, causing it to align with the flux path, and thereby creates a driving bond between input and output part, the strength of which is solely determined by value of D.C. current applied to the field coil.
-

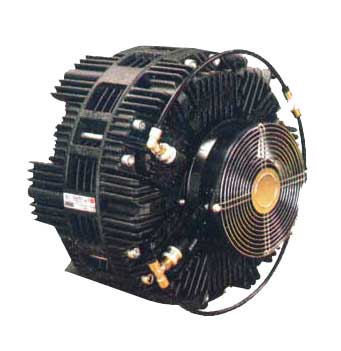

PNEUMATIC BRAKE
MAXWELL CONTROL Pneumatic Brakes easy to use, the brake are fully assembled or chuck mounted, ready to fit and easy mounting mainly use for unwinder application.
-

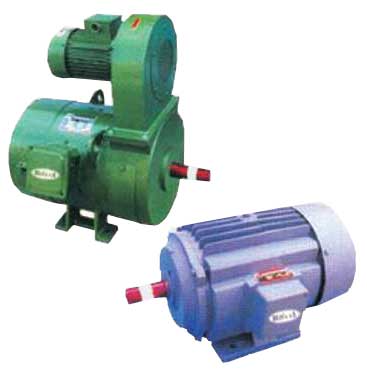

D.C. AND A.C. MOTOR
MAXWELL CONTROL D.C..and A.C. Motor are use for Unwinder, Rewinder and also Main Web Tension Application.
-

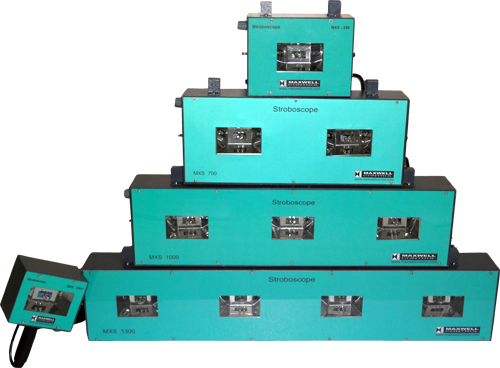

Stroboscope
MAXWELL CONTROL On Line High Speed Web Inspection Stroboscopes is designed for inspecting the web beyond the speed. At very high speed printing it is not possible for the human eye to inspect the web and correct them On Line. The Stroboscope facilitates the operator to detect the defects and take timely action to correct shifting of registration, color splashing or spraying, lines, color, mismatch, folds, overlaps, fading, etc.MAXWELL Control On Line High Speed Web Inspection stroboscope is Operator Friendly with Zero Maintenance, Sharp visibility, High accuracy, Long life, High performance. Light weight, easy to handle.
SPECIFICATION MXS-1300 MXS-1000 MXS-700 MXS-250 Web width 1300 mm 1000 mm 700 mm 250 mm Input Supply 230VAC - 50Hz 230VAC - 50Hz 230VAC - 50Hz 230VAC - 50Hz Web Synchronization Auto/Manual Auto/Manual Auto/Manual Auto/Manual Installation Machine Mount Machine Mount Machine Mount Machine Mount Strobe Lamp Quartz Lamp Quartz Lamp Quartz Lamp Quartz Lamp
-

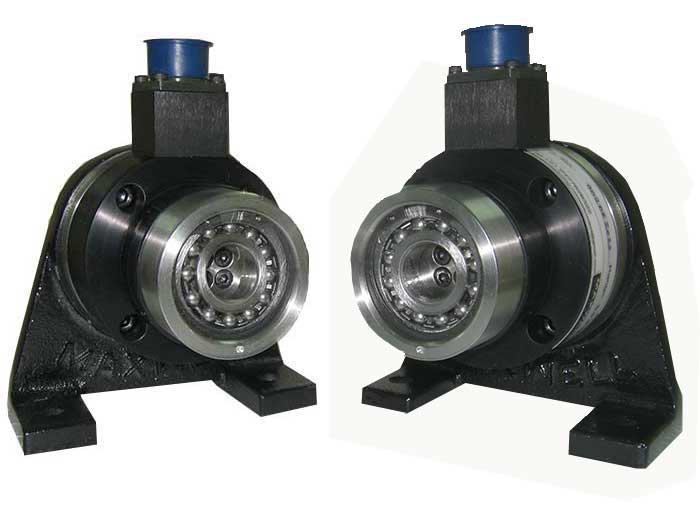

Load Cell
MAXWELL CONTROL Load cells consist of a special design structure to get extreme linearity and good repeatability under all loading condition when installed as per the instructions given. Sensing elements of load cells are of strain gauge type configured to form a 4-arm whetstone bridge. Two opposite arms of Whetstone Bridge are energized with dual power supply of 10 VDC source from the associated controls. Under no-load, the bridge is near zero mV. When force is subjected in the direction of sensing plane, the bridge is subjected to imbalance proportional to the extent of loading. Correspondingly, potential difference between other two ends of bridge is increased which is used for amplification. The signal from load cells is amplified to the useful levels acceptable for tension controllers and indicator
-

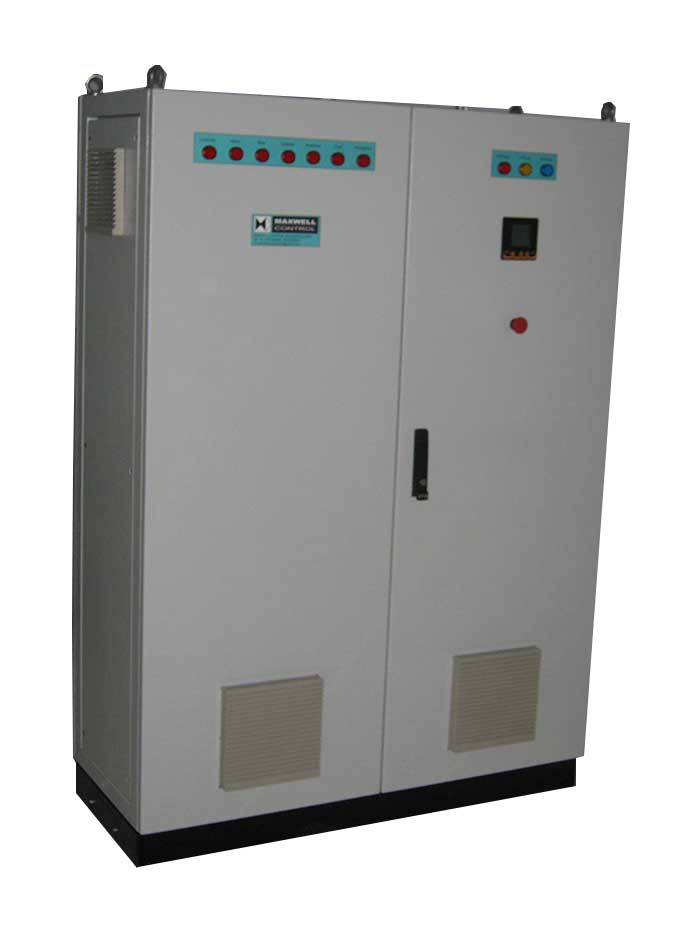

Multi Drive Synchronize Systems
MAXWELL CONTROL make multi drive synchronize system is operator friendly, Easy operation and constant tension for entire range like Unwinder, Infeed, Main, Outfeed and Rewinded
Application
- Rotogravure printing machine
- Lamination machine
- Slitting machine
- VMCH coating Machine
- Doctoring Machine
-

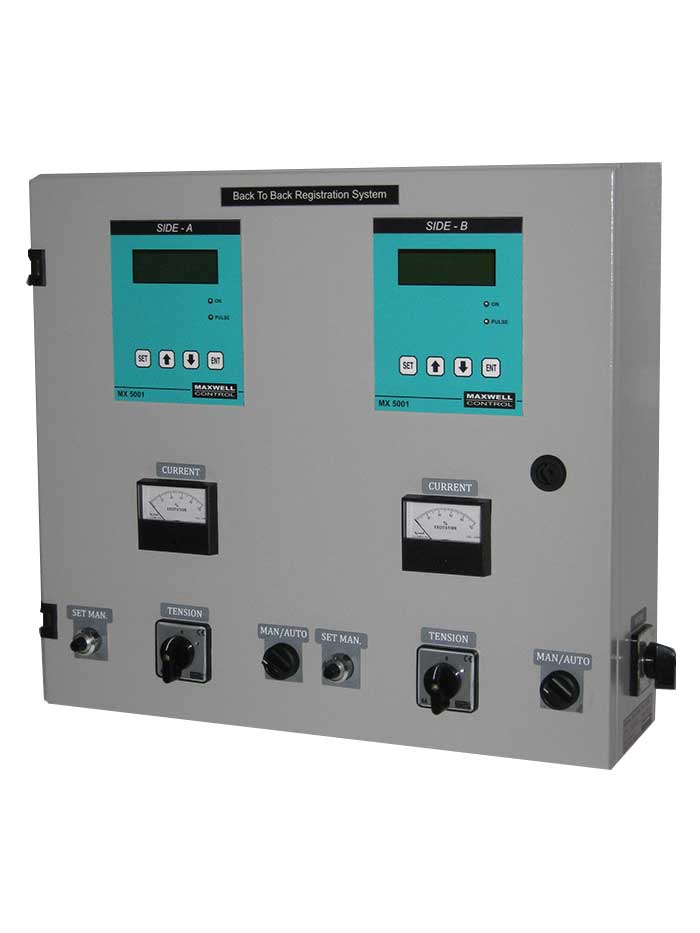

Back to Back Registration Systems
Back to Back Registration Systems for Extrusion Coating lamination Machine.
-
Web Guiding System Electronic / Hydraulic (Powerpack)

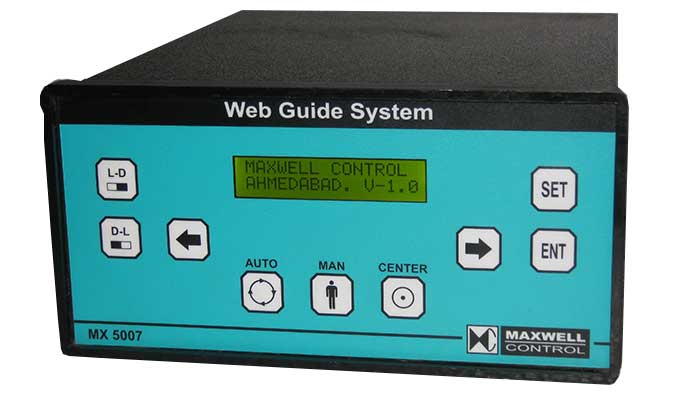

ELECTRONIC LINE & EDGE GUIDING SYSTEM
Feature :
Guide Controller MX 5007 is specially designed For Motorized Actuator and sensors. This model use to sense printed & edge materials of paper, plastic film, foil, textile etc.- Position Control System.
- Adjustable track Control with Scrolling Display
- With latest Design of LCD, Scrolling arrow Presents the Possibility of operating all contrast and backgrounds, presenting different surface treatments.
- High Response Motor Powered Actuator
- Proximity Switch Provided for automatic end travel limit.
- Power : 210V-250V AC
- Operating Temperature : 0-50c
- Display : 16x2 LCD
- Operating Mode : Automatic & Manual
- Sensor : Contras, Through beam & ultrasonic
- Sensor input : 0-5VDC
-

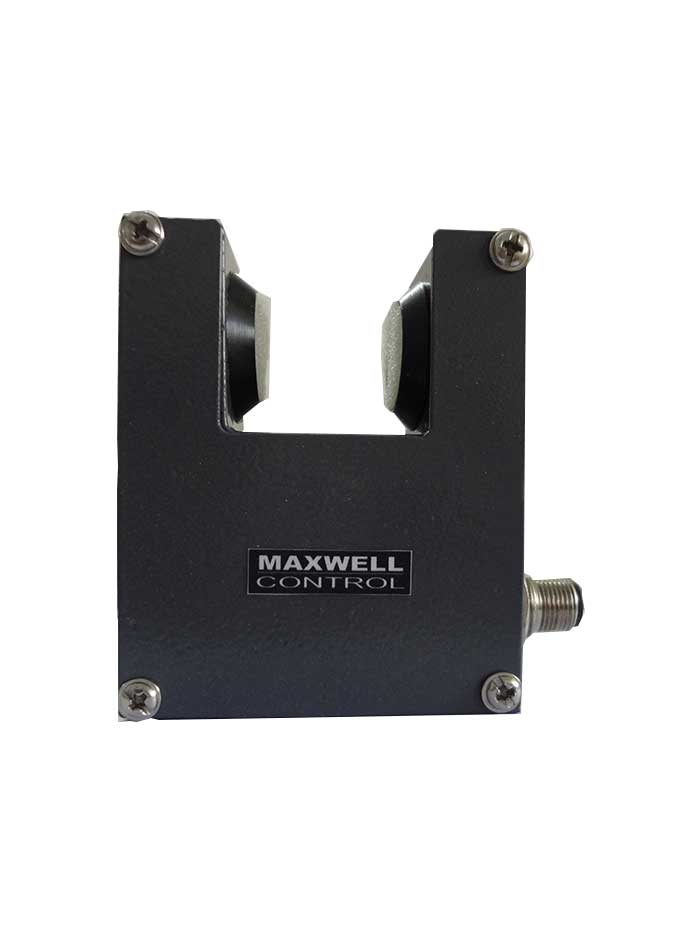

ULTRASONIC SENSOR
Maxwell ultrasonic sensor is used to detect the edge position with high accuracy. It detects the edge of transparent and opaque Fabric material any colour of web material.
Feature :- Rapid response speed.
- Analog Output
- Model : MX 5008
- Detection Type : Ultrasonic
- Detection Distance : 25mm
- Detection Diametre : 10mm
- Detection error : 0.1mm
- Response time : 100μs
- Input : 15VDC
- Output : 0-5VDC
-

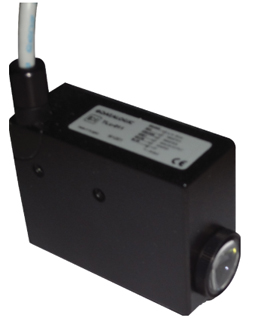

OPTO ELECTRONIC SENSOR
Specification :
In LCD, Scrolling arrows offering the possibility of operating on all contrast with an operating distance of 9mm max between sensor & web.- Model : TLU 011
- Sensor Type : Photo electric
- Minimum spot dimension : 1.5x5mm/2x7mm
- Ripple : 2VPP Max
- Response Time : 50μs MAX
- Switching Fquency : 10+20KHz
- Input : 10-30VDC
- Output : 0-5.5VDC
- Material which can Be Detected : Detection of transparent material, Detection of opaque material, Edge detection, line detection
-

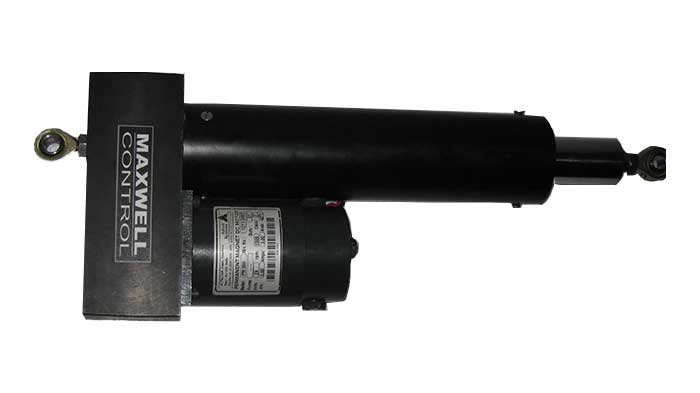

ACTUATOR
Specification :
A new design of actuator with DC motar, combined with linear screw components offering the standard of convenience for maintenance also improved the power consumption rate, noise problem & physical volume. Also never make dirty on floor so you can keep clean factory. Motar Actuator is operated by 24 VDC/60 watt PMDC Motor.- Rapid response Speed.
- Excellent Precision as linear Screw.
- Lower Consumption Power and high efficiency.
- Easy to install and Zero Maintenance.
-

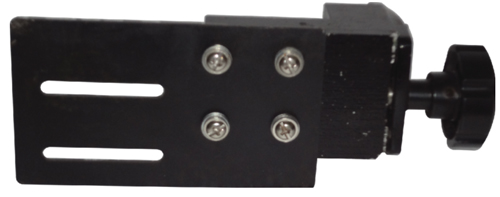

ACCESSORIES - SLIDER ASSEMBLY
ACCESSORIES - BAR HOLDER
