Guide Controller MX 5007 is specially designed For Motorized Actuator and sensors. This model use to sense printed & edge materials of paper, plastic film, foil, textile etc.

• Position Control System.
• Adjustable track Control with Scrolling Display
• With latest Design of LCD, Scrolling arrow Presents the Possibility of operating all contrast and backgrounds, presenting different surface treatments.
• High Response Motor Powered Actuator
• Proximity Switch Provided for automatic end travel limit.

• Power : 210V-250V AC
• Operating Temperature : 0-50c
• Display : 16x2 LCD
• Operating Mode : Automatic & Manual
• Sensor : Contras, Through beam & ultrasonic
• Sensor input : 0-5VDC

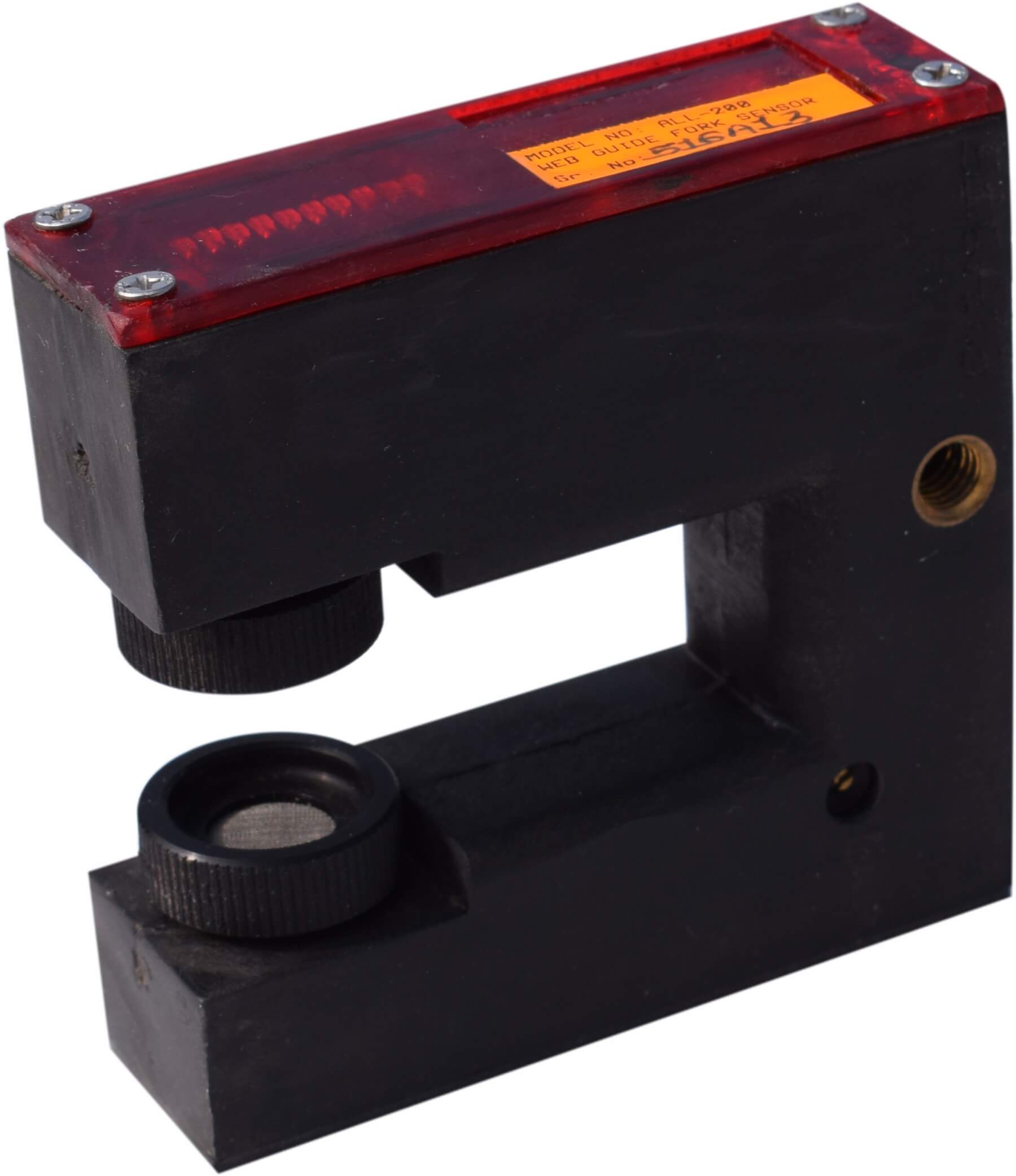

Maxwell ultrasonic sensor is used to detect the edge position with high accuracy. It detects the edge of transparent and opaque Fabric material any colour of web material.

• Rapid response speed.
• Analog Output

• Model : MX 5008
• Detection Type : Ultrasonic
• Detection Distance : 25mm
• Detection Diametre : 10mm
• Detection error : 0.1mm
• Response time : 100μs
• Input : 15VDC
• Output : 0-5VDC

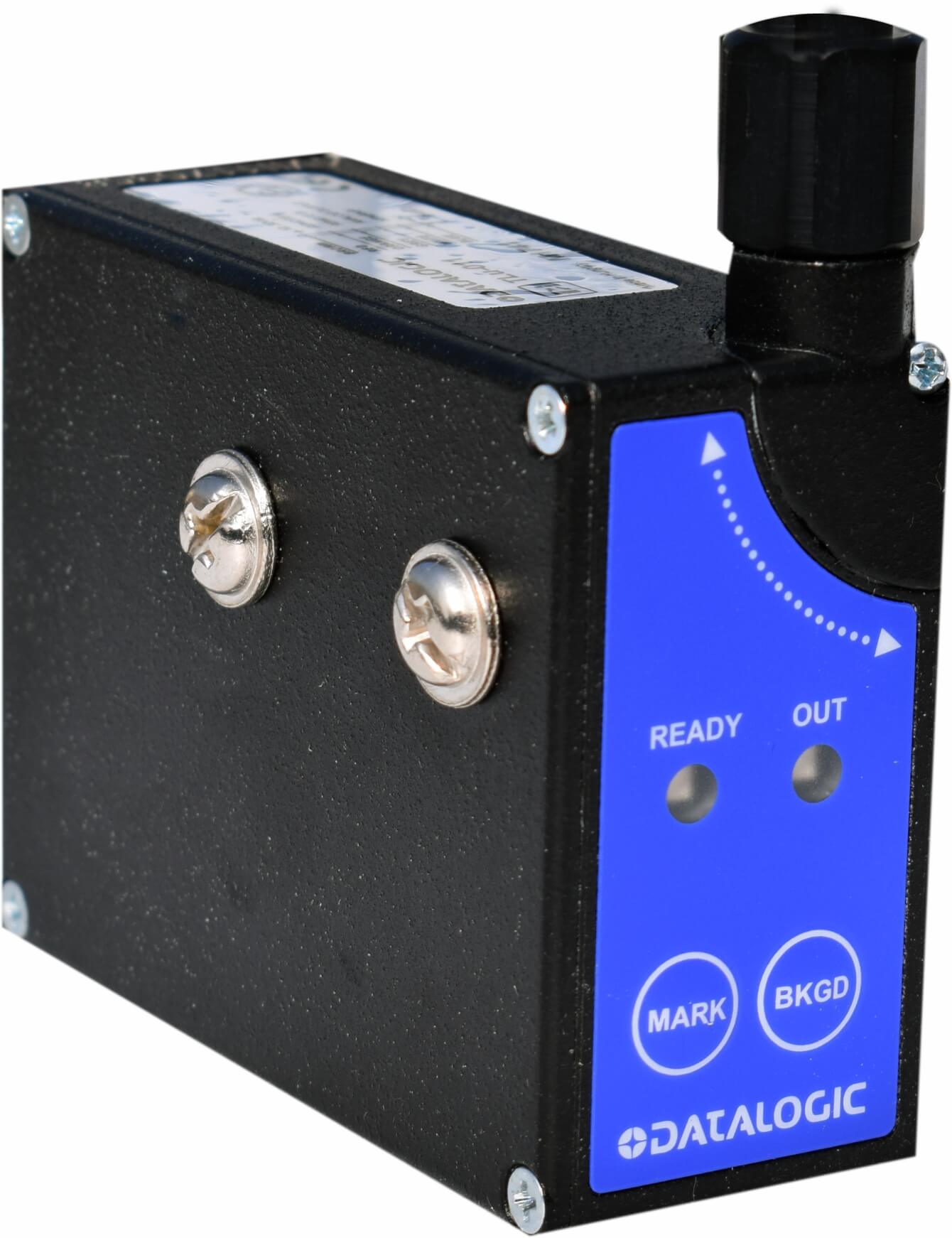

In LCD, Scrolling arrows offering the possibility of operating on all contrast with an operating distance of 9mm max between sensor & web.

• Model : TLU 011
• Sensor Type : Photo electric
• Minimum spot dimension : 1.5x5mm/2x7mm
• Ripple : 2VPP Max
• Response Time : 50μs MAX
• Switching Fquency : 10+20KHz
• Input : 10-30VDC
• Output : 0-5.5VDC
• Material which can Be Detected : Detection of transparent material, Detection of opaque material, Edge detection, line detection

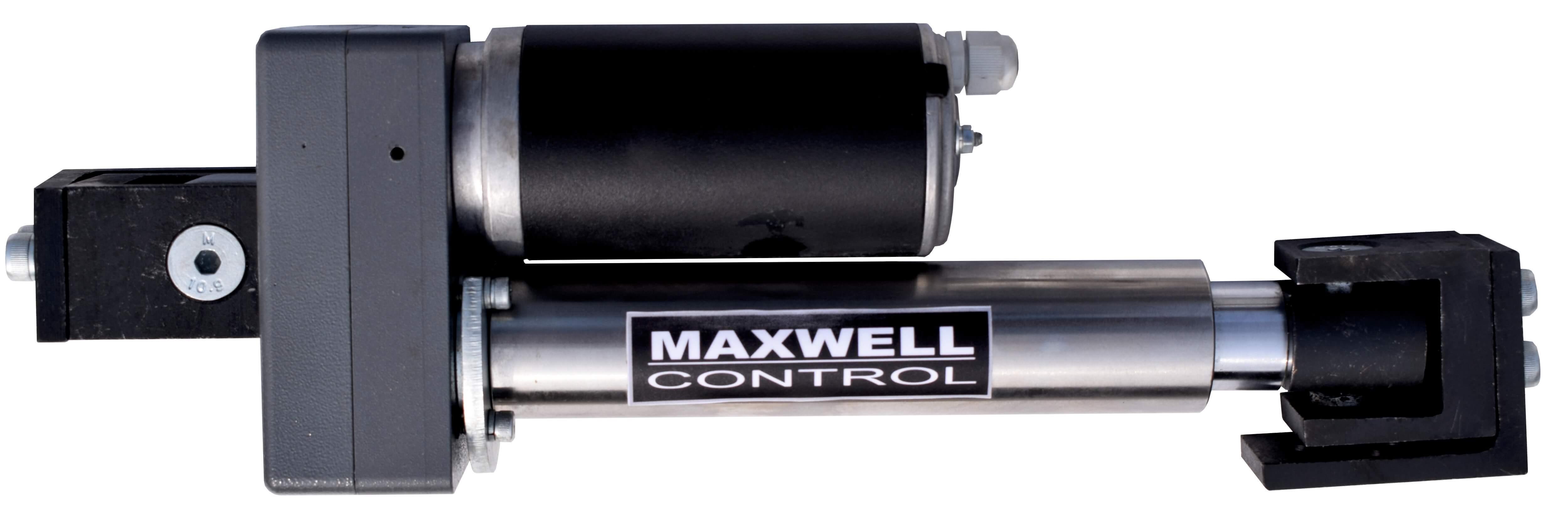

A new design of actuator with DC motar, combined with linear screw components offering the standard of convenience for maintenance also improved the power consumption rate, noise problem & physical volume. Also never make dirty on floor so you can keep clean factory. Motar Actuator is operated by 24 VDC/60 watt PMDC Motor.

• Rapid response Speed.
• Excellent Precision as linear Screw.
• Lower Consumption Power and high efficiency.
• Easy to install and Zero Maintenance.
